EXTERNAL CASING ATTACHMENTS

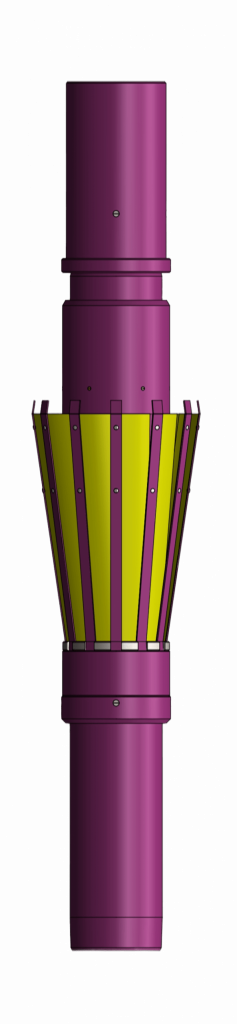

Cementing basket CK

Cementing Basket is used to create a platform for sedimentation of cement slurry filling outer annular
space outside a casing diameter 102, 114, 127, 140, 146, 168 and 178 mm.
During cement slurry squeezing a cementing plug goes through the inner hollow of the device and
disengages the early actuation protection. After receiving the “bump” signal and the check valve
leakage test the internal pressure is build-up to the actuation pressure of the device preset before the
device RIH. Shear bolts are destroyed and actuation starts. Petal shell is outstretched and touches
the hole wall thus constructing a base for sedimentation of cement slurry solid phase. Condensed
cement connecting strip is formed by itself on it thus preventing lowering of the cement slurry
column in the hole.

PARAMETER DESCRIPTION	VALUE
PARAMETER DESCRIPTION	CK.102/140	CK.114	CK.127	CK.140	CK.146	CK.168	CK.178
Maximum outer diameter, mm	117	130	144	163	170	193	200
Casing string diameter equipped and RIH with the device, mm	101,6	114,3	127	139,7	146,1	168	178
Drift diameter, after actuation, mm	89	99	112	126	127	150	162
Device actuation pressure¹ , MPa	16	16	16	16	16	16	16
Maximum diameter of basket opening, mm	185	195	195	205	240	250	260
Length, mm	955	1050	1050	1150	1150	1150	1150
Weight, kg, not more	29	31	34	52	55,5	65,5	69
Maximum operating temperature² , °C	100	100	100	100	100	100	100

1
Actuation pressure when all the shear bolts.
2
Reference only, depends on operating conditions of general mechanical rubber goods in a well.
