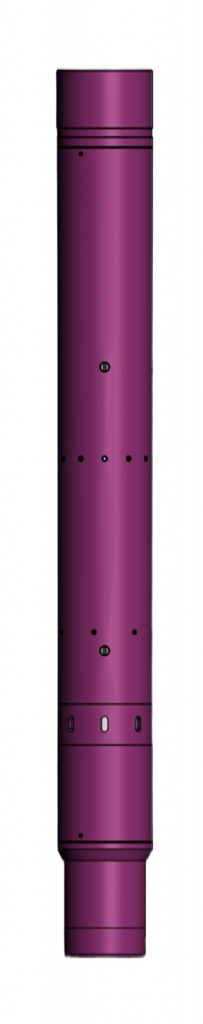

Collar Cementing Valve is applied for collar cementing of liners and is used as a whole
with the packer PMC or PMC-R.
The valve opens hydraulically by pressure build-up. The valve closes automatically
at any moment when outer annular pressure is higher than pipe pressure. Final valve
closing and fixation in the set position are performed when a cementing plug is set
into a seat in the valve.
| PARAMETER DESCRIPTION | VALUE | |
|---|---|---|
| KMC.102 | KMC.114 | |
| Liner nominal diameter equipped with the device, mm | 102 | 114 |
|
Open borehole diameter which the device is run into and installed, mm |
123,8-124 | 142,9 |
| Maximum outer diameter of the device, mm | 118 | 130 |
| Drift diameter of the device (after disconnection), mm | 88 | 99 |
| Length of the device fully assembled, mm, not more | 594 | 670 |
| Device weight, kg, not more than | 15,4 | 20,7 |
|
Maximum tensile force at which the stresses in the body parts reach the yield point1 , kN (tn) |
600 (60) | 700 (70) |
|
Cementing ports opening pressure2 , MPa ±10% |
16,0 | |
|
Maximum operating temperature3 , °C |
100 | |
|
Connecting threads4: - top according to TU 14-161-163-96 (GOST 632-80) - bottom according to TU 14-161-163-96 (GOST 632-80) |
ОТТМ 102 ОТТМ 102 |
ОТТМ 114 ОТТМ 114 |
1
Calculated value when stresses reach yield point of the material.
2
Actuation pressure with all shear bolts.
3
Reference only, depends on operating conditions of general mechanical rubber goods in a well.
4
Connecting thread type is agreed with the Customer.
